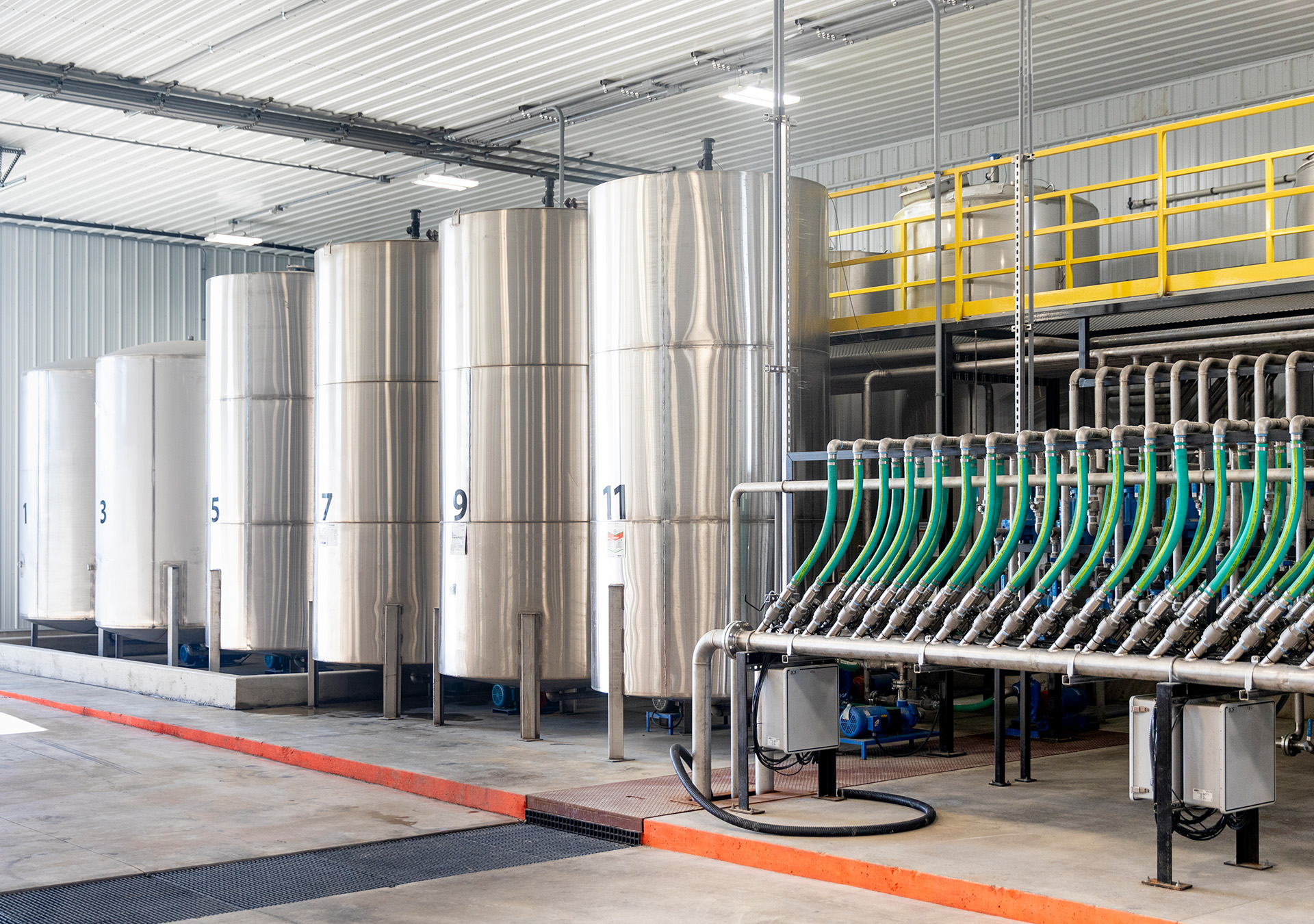

Store and dispense chemicals for retail applications. The standard system comes with tank large enough to take advantage of chemical price breaks, along with a pump & meter stand that includes an NTEP certified, weights and measures approved meter.

Retail Bulk Chemical System

Tank:

  • 1,600-12,000 gallon (6,100 is standard)
  • Constructed of 304 back welded stainless steel with #4 polished finish
  • 304 stainless steel legs
  • 16” stainless steel manway
  • Two 2” female threaded fittings on the top
  • Two 2” female threaded openings in the sidewell
  • Two in-tank eductors 180 degrees apart
  • One 2” male threaded opening at the bottom of the tank
  • Standard 6,100 Gallon Tank Dimensions: 96” diameter x 226” overall height

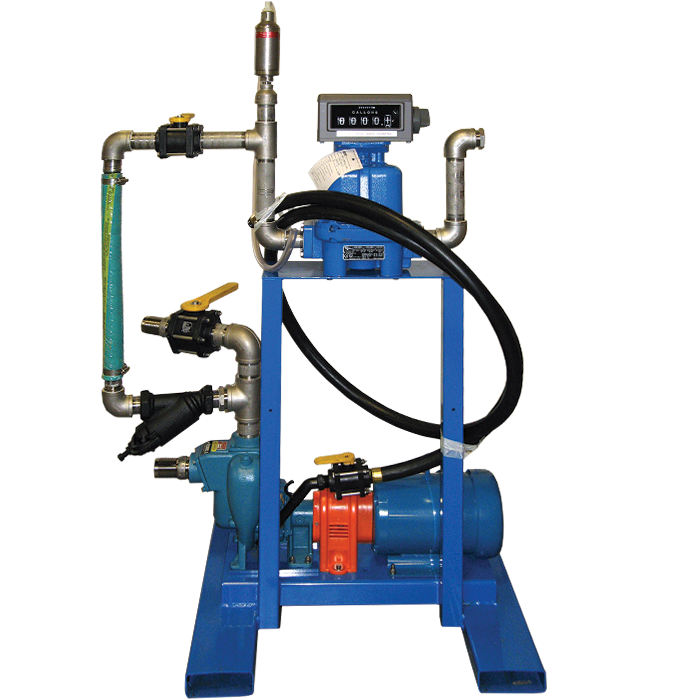

Dispensing System:

  • 2” x 2” self-priming centrifugal cast iron pump with a 5 hp, 3 phase, 3600 TEFC electric motor (Optional single phase)
  • Optional: NTEP certified, weights and measures approved cast iron 682 TCS meter with a 5-wheel re-settable head with totalizer and ¾ stainless steel air eliminator
  • Optional: Pump and meter are mounted on a tubular steel stand
  • This system has sufficient valves and fittings to direct product either through the meter to loadout or back to the tank for recirculation.

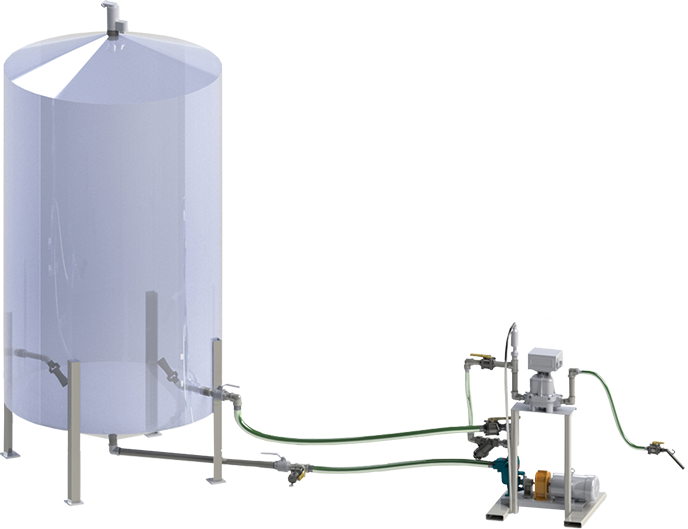

Plumbing:

  • 1 lb/1 oz conservation vent with vent baffle
  • Stainless steel locking ball valves
  • Bottom fill adapter to simplify tank filling
  • All cross linked polyethylene 2” suction and recirculation hose
  • 1” x 12 ft delivery hose and nozzle valve




Retail Bulk Chemical System for Liquids Not Compatible with Iron

Tank:

  • 1,600-12,000 gallon (6,100 is standard)
  • Constructed of 304 back welded stainless steel with #4 polished finish
  • 304 stainless steel legs
  • 16” stainless steel manway
  • Two 2” female threaded fittings on the top
  • Two 2” female threaded openings in the sidewell
  • Two in-tank eductors 180 degrees apart
  • One 2” male threaded opening at the bottom of the tank
  • Standard 6,100 Gallon Tank Dimensions: 96” diameter x 226” overall height

Dispensing System:

  • 2” x 2” stainless steel self-priming centrifugal pump with a 5 hp, 3 phase, 3600 TEFC electric motor (Optional single phase)
  • Optional: NTEP certified, weights and measures approved stainless steel 682 TCS meter with a 5-wheel re-settable head with totalizer and ¾ stainless steel air eliminator
  • Optional: Pump and meter are mounted on a tubular steel stand
  • This system has sufficient valves and fittings to direct product either through the meter to loadout or back to the tank for recirculation.

Plumbing:

  • 1 lb/1 oz conservation vent with vent baffle
  • Stainless steel locking ball valves
  • Bottom fill adapter to simplify tank filling
  • All cross linked polyethylene 2” suction and recirculation hose
  • 1” x 12 ft delivery hose and nozzle valve
